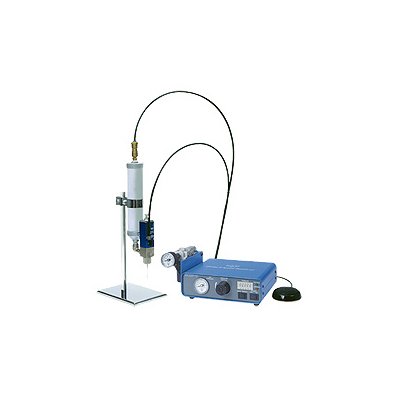

Air pressure liquid-discharging valve dispenser | DCOP-D




DCOP-D is a dispenser incorporating a dosing valve that opens and closes by air pressure. Liquid dripping can be prevented for accurate operation. A wide range of tanks and dosing valves are available to meet users specific needs.



  • Operates at 100 to 240 VAC, requiring no modification for use outside Japan.
  • The minimum time range setting is 0.001 sec., enabling dispensing of very small volumes and fine control of dispensing time.
  • Input/output terminals are provided for joint operation with automated machinery such as robots.



  • Output range : 0.002ml (min.)
  • Supply voltage : AC100V ~ 240V 50/60Hz
  • Time range : 0.001 ~ 99.99 sec.
  • Pressure range : 0.02 ~ 0.49MPa


Other Information

  • Minimum Order Quantity: 1 piece
