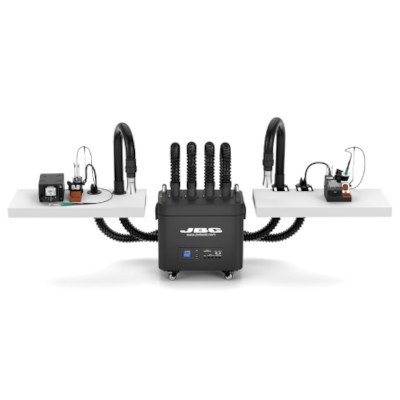

Fume Extractor for 2 workbenches

Attribute:

SKU : JBC FAE2

Share

FAE is the most effective solution to avoid exposure to solder fumes. The extractor activates and operates only when soldering.

The extractor starts up only when soldering. This function not only saves power, but also extends the life span of the equipment, including the filter. FAE2 stand has an integrated vacuum system that detects when the tool is at rest and automatically absorbs excess fumes. FAE2 provides direct connection of up to 4 soldering or rework stations with a total of 8 tools. It can be controlled via JBC Stations, a pedal, a robotic system or a PC. It has 3 predefined levels of aspiration: low, medium and high. It also features a custom mode where the airflow can be set within the minimum (10%) and maximum rates (100%).



Reference

  • FAE2-5B


Product Composition

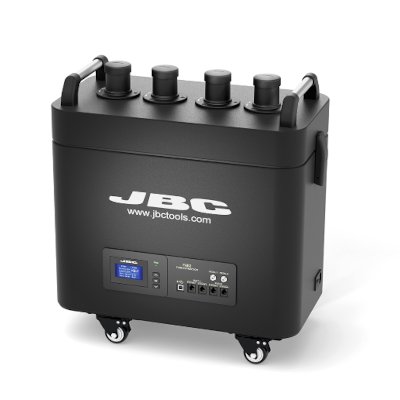

  • 1 FAE2 Fume Extractor for 2 workbenches


Specification

SELECTABLE PARAMETERS

  • Aspiration flow rate : Low / Medium / High / Custom
  • Operation modes : Automatic (JBC Stations) / Continuous / Pedal



OTHERS

  • Blower type : Brushless
  • Max. flow rate : 290m3/h (170.7 CFM)
  • Max. vacuum : 6.1 KPa (0.88 psi)
  • Work areas : 2
  • Noise Level : 54 dB @ 1m


FILTERS

  • Pre-filter : Medium dust filter M5 (EN 779)
  • Compact filters : H13 particle filter (EN 1822) + activated carbon filter



CONNECTIVITY

  • USB-B : Firmware update
  • RJ12 Connector : Direct connection for 4 Stations
  • Pedal connector : Optional tool control


ESD/EOS

  • ESD safe
  • Power Supply Peak power : 400 W (120 V - 230 V) / 320 W (120 V)


WEIGHT AND DIMENSIONS

  • Unit : 560 x 320 x 590 mm / 33.60 kg. / 22.05 x 12.60 x 23.23 in / 74.07 lb.
  • Package : 725 x 485 x 760 mm / 39.00 kg. / 28.54 x 19.09 x 29.92 in / 85.98 lb.



Other Information

  • Minimum Order Quantity: 1 piece
