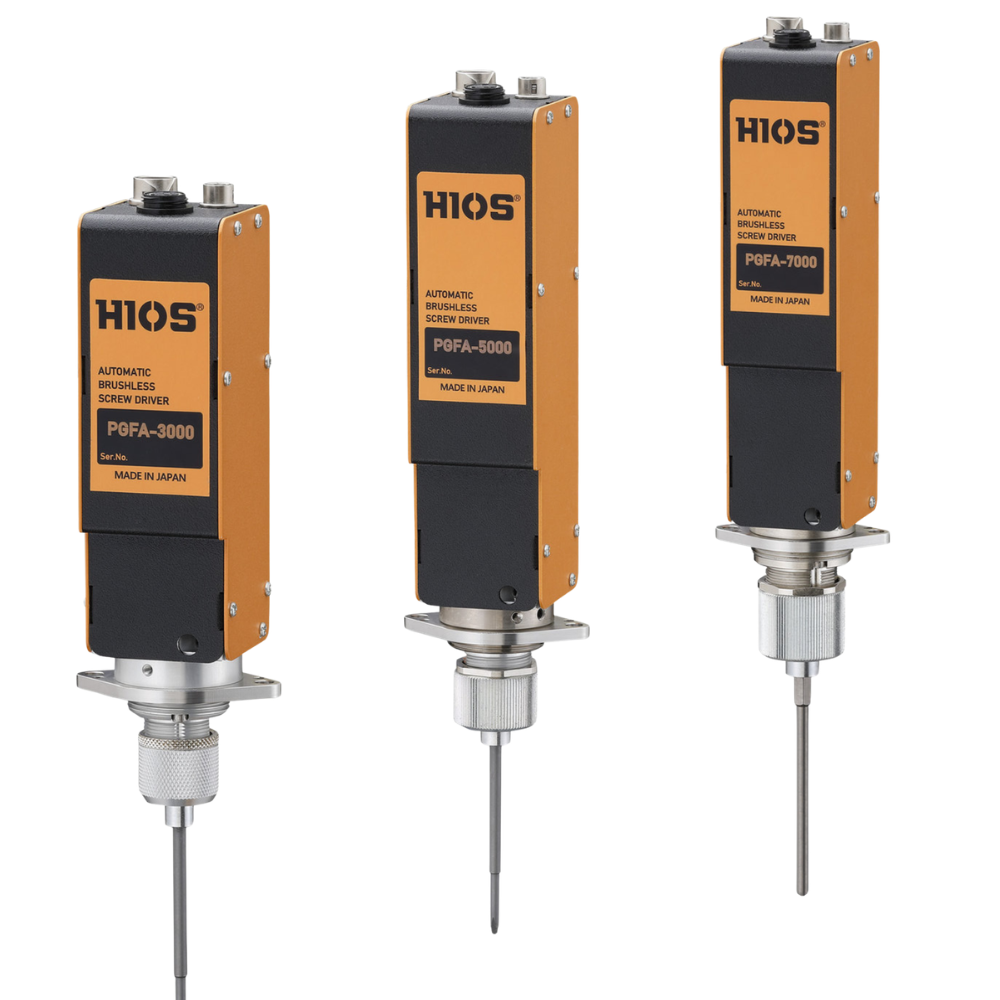

Brushless Screwdriver (DC type) Built-in Torque Sensor for machines | PGFA Series
Attribute:
SKU : HIOS PGFA Series
Categories : ELECTRIC SCREWDRIVER , HIOS ,
Share
Utilize the data of screw fastening operations
Features
- With a built-in torque sensor, pass / fail judgment is performed each time a screw is tightened.
- It is possible to detect screw tightening defects such as insufficient torque, screw floating, and diagonal tightening, which are difficult to judge visually.
- The screw tightening work data can be output to a PLC or PC.
- You can control the forward / reverse / rotation speed of the driver from the outside.
* In addition to this machine, the control unit judgment device "PG-01" and the interface "PGF-SUBBOX" are required.
Model

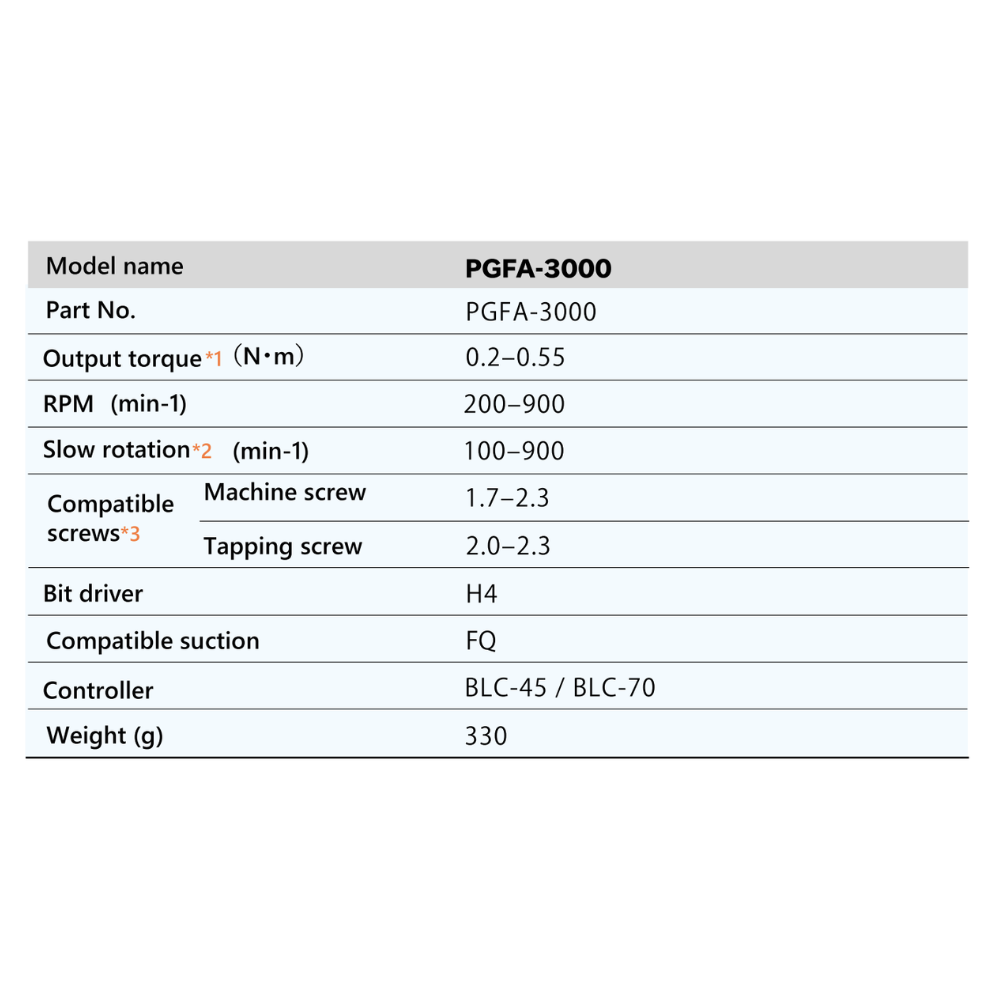

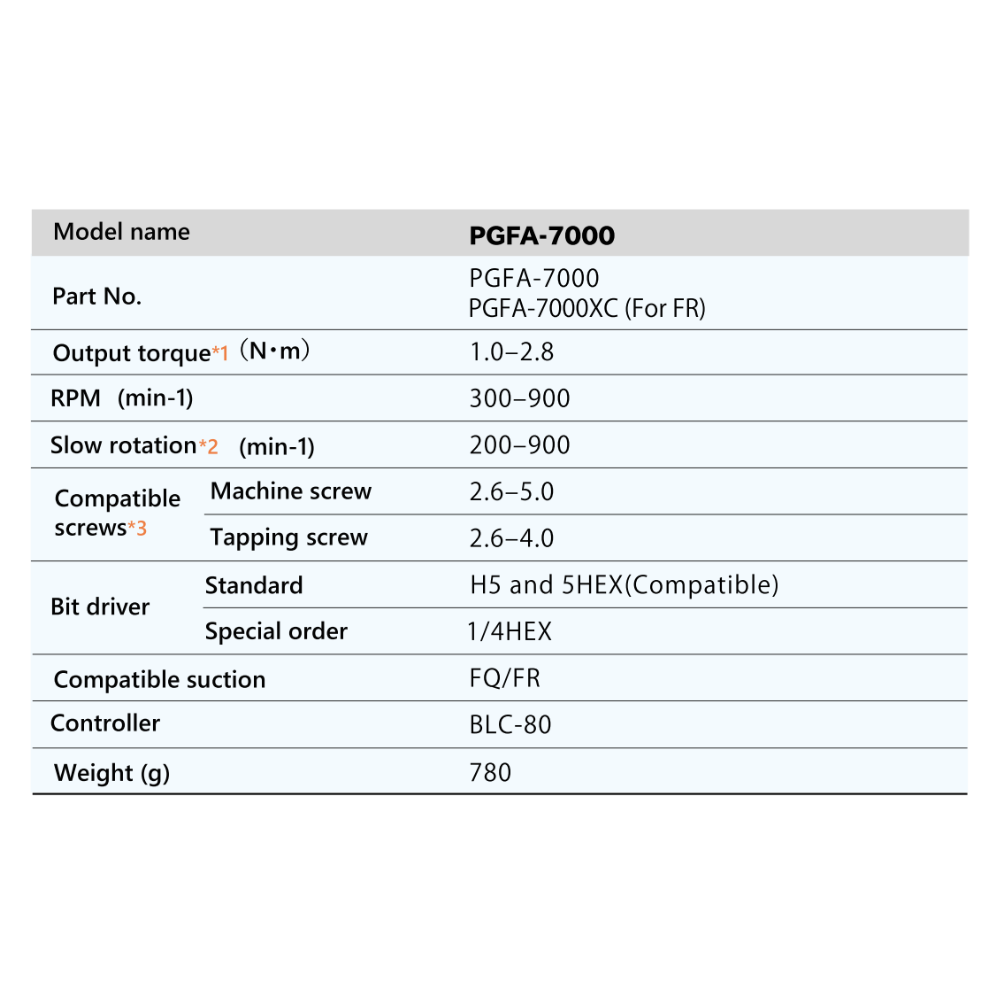

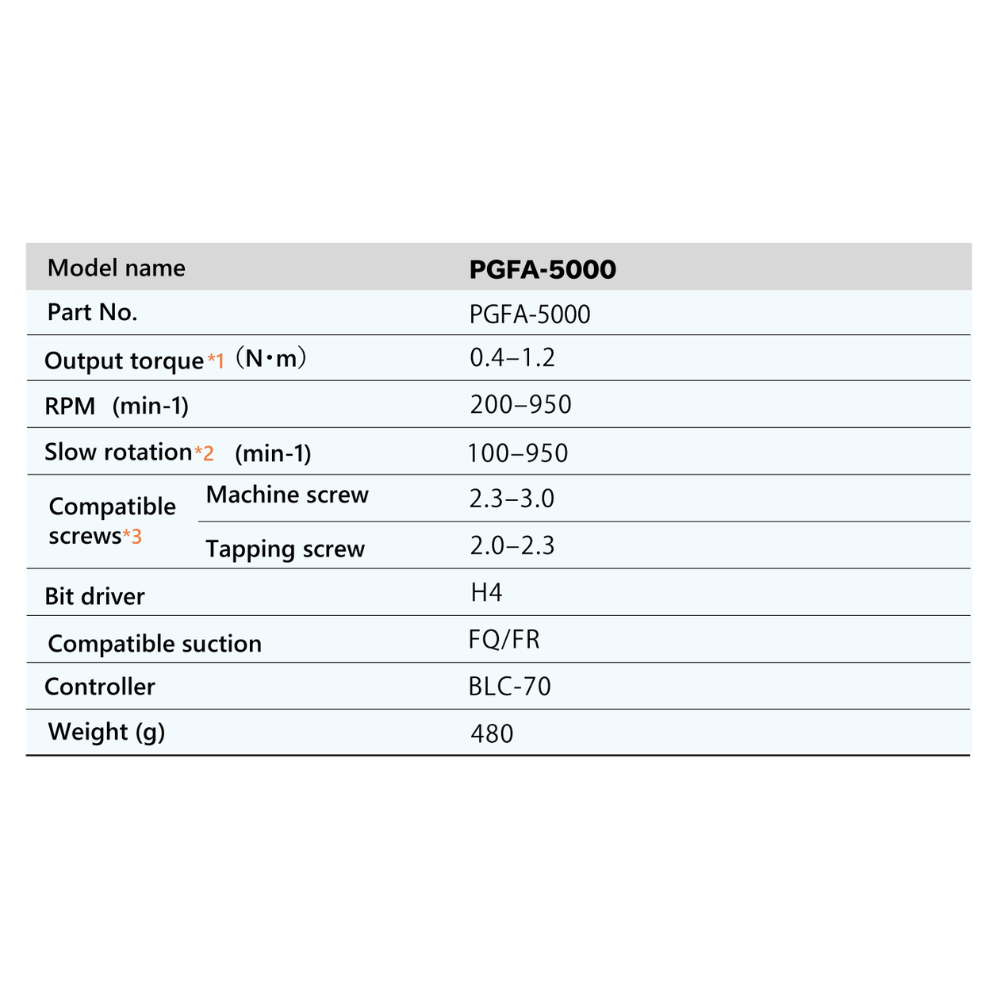

PGFA-3000 / PGFA-5000 / PGFA-7000
Other Information
- Minimum Order Quantity: 1 piece
