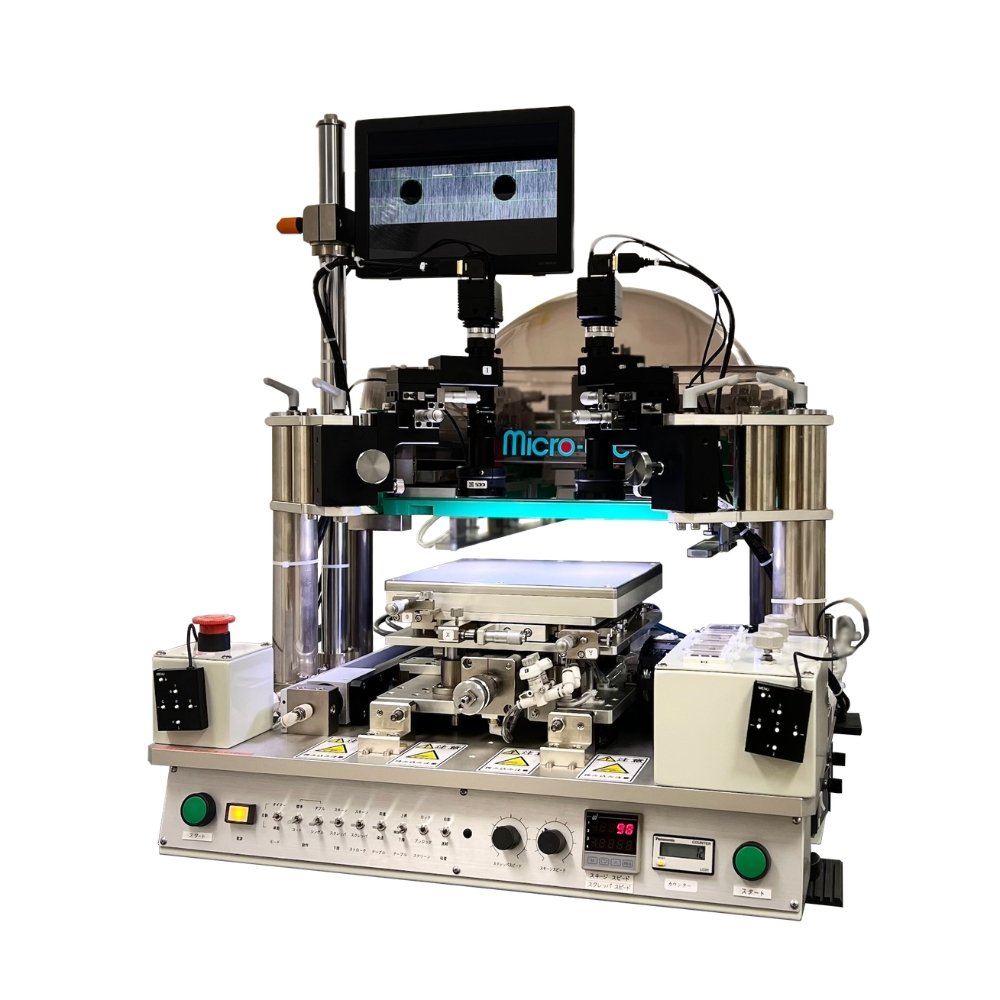

Laboratory screen printer | LABTOP 38

All (Compact, Excellent printability, Preciseness, Durability) in one high quality screen printer.

Specification

• Screen mask size: 320mm x 320mm - 380mm x 380mm
• Print area: 150mm x 150mm - 180mm x 180mm（Max.）
• Table size: 230mm x 230mm
• Squeegee holder: For both Microtec squeegee and Microtec DB squeegee
• Print pressure: Air-balanced method
• Squeegee angle: 60 deg. – 80 deg.
• Suction area: 130mm x 130mm
• Suction hole diameter：φ1.5mm 10mm pitch
• Dimension: (W)600mm x (D)990mm x (H)597mm (With cameras : 850mm)
• Power supply: AC 100V Single Phase, 50/60Hz 15A
• Air supply: 0.5MPa, 10NL/min.
• Air compressor (Option): Oil-free type
• Vacuum: Printing table : Substrate suction using air ejector
• Alignment(Option): 10” monitor, 2 off Hi-vision (2M pixel) camera, Manual alignment: Adjusting table in X, Y, Theta directions
• Table slow descent(Option): Air speed control valves with scales


• Minimum Order Quantity: 1 piece
