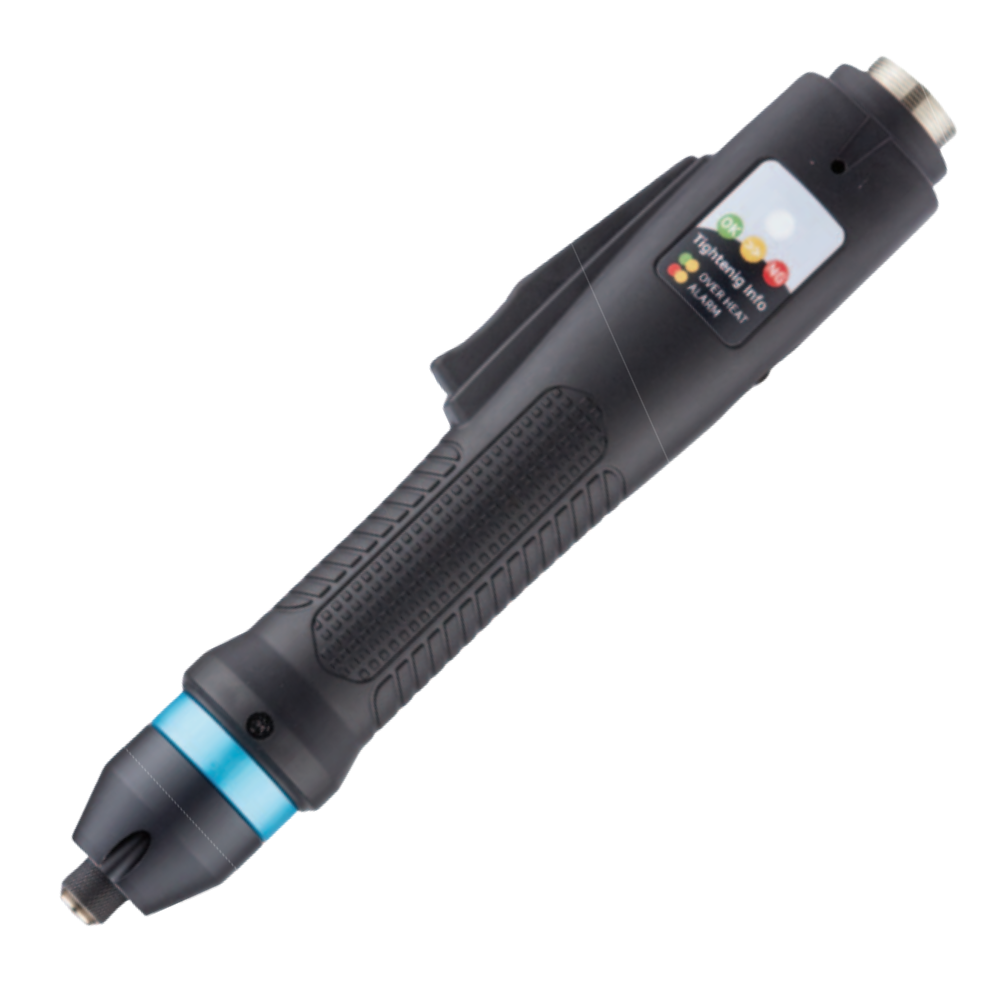

Transducerized Current-Controlled Screwdriver | MDT

Features

• Built-in torque transducer digital torque & angle control DC tool
• Digital torque and angle setting in 15 presets and 2 multi step
  sequence programs
• Models managing variable presets with counting no. and I/O in
  sequential 20 steps
• Color LCD touch screen with the user friendly easy settings
• Auto safe speed by torque setting as a standard factory setting
• Self customizing on actual tightening application for optimized setting
• Monitoring fastening quality and count of screw numbers
• Error information by code display
• Easy parameter setting and monitoring by ParaMon (PC software)
• Real time torque data and curve display with 2ms resolution
• Real time fastening data output
• Modbus protocol open protocol
• RS232C, Ethernet communication port
• Fastening data storage in SD card
• 3% torque accuracy and +/-3% of repeatability
• Fastening torque data analysis ( Stdev, Mean, Average, CP, CPK ) on ParaMon
• 15 input and 8 output flexible digital I/O
• ESD Free by body grounding and long life time over 5 million cycle
• Built-in torque transducer

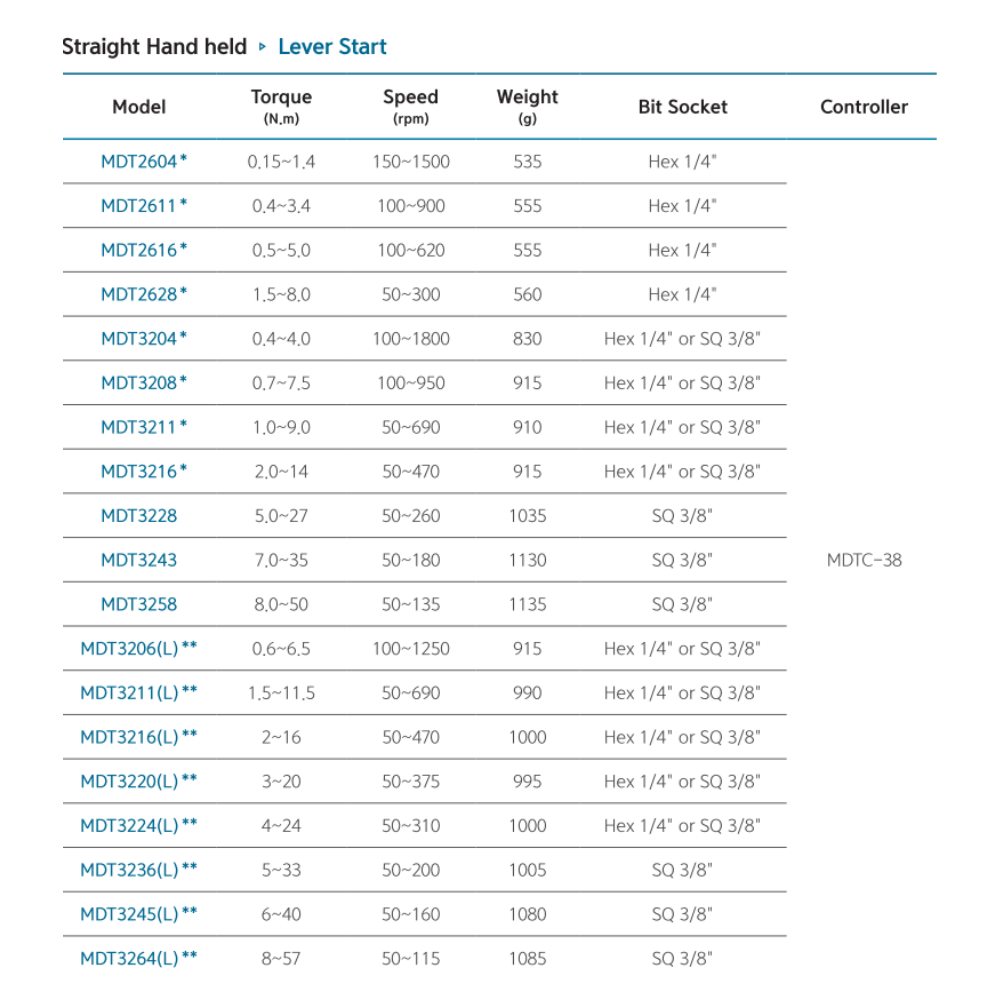

Model

MDT2604 / MDT2611 / MDT2616 / MDT2628 / MDT3204 / MDT3208 / MDT3211 / MDT3216 / MDT3228 / MDT3243 / MDT3258 / MDT3206(L) / MDT3211(L) / MDT3216(L) / MDT3220(L) / MDT3224(L) / MDT3236(L) / MDT3245(L) / MDT3264(L)

Other Information

• Minimum Order Quantity: 1 piece
